Description
Item specifics
- Brand Name:wiistar
- Packing:Carton Box
- Connector B:RCA
- Package:Yes
- Gender:Male-Female
- Connector A:HDMI
- Outer Diameter:hdmi to rca av svideo
- Type:HDMI Cables
- Application:Multimedia
- Model Number:Adapter
- Shielding:Non-Shielded
- Gender:Male-Female
- Type:Twisted Pair
- Connector Type:Composite
- Connector Color:Black
Product Description
Wiistar HDMI to AV/S Video Converter HDMI to RCA/SVIDEO+S VIDEO Switcher Adaptor 1080P HD Free Shipping
BEST SOLUTION VS8812

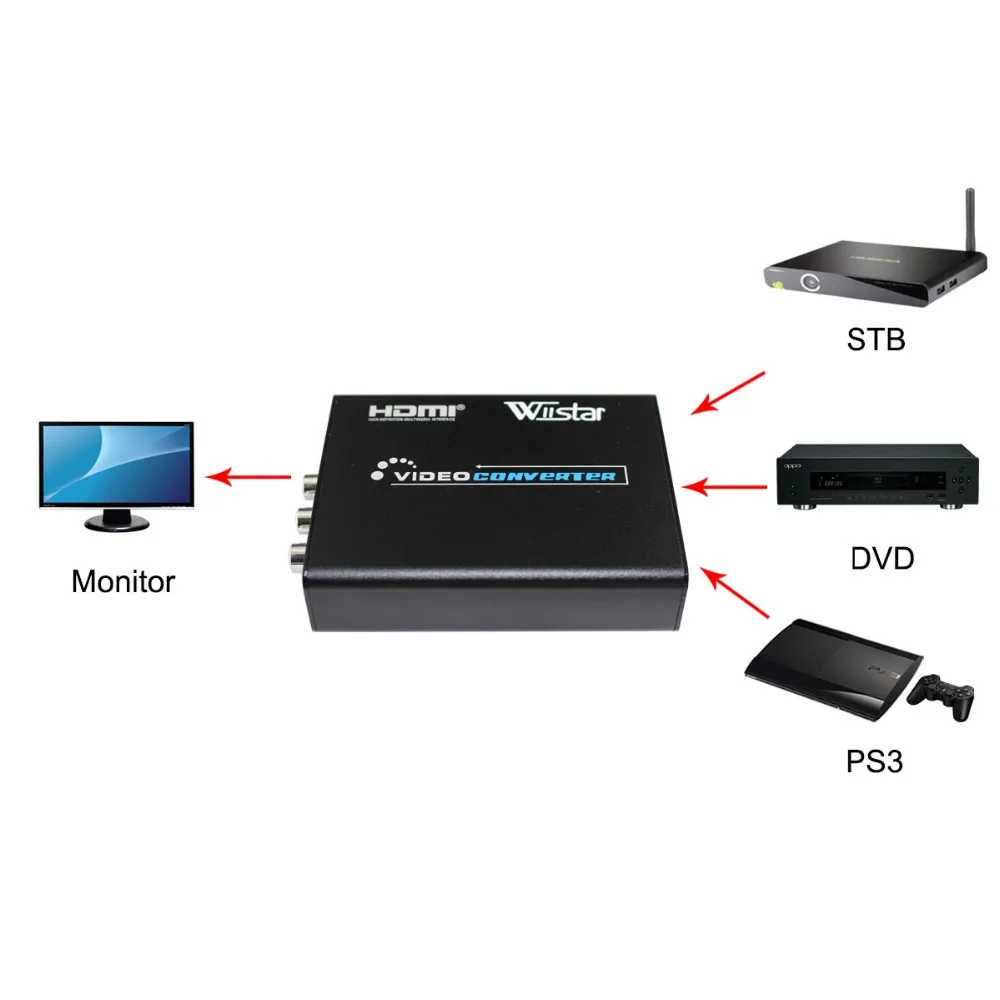

This converter box is designed to convert HDMI to either composite video or S-Video. It allows only equipped HDMI output device is connected to CRT TV.
It is mainly used in AV equipment testing. Only provides 3 RCA and AV cable to the TV and the HDMI display device like HDTV, in addition, the power supply provided, you will have an exciting feeling. Have fun!
Note: This thing is not compatible with XBOX360.
Features:
(1)100% brand new and high quality.
(2)Easy to Use:Installs in seconds, no settings and it is a resolution pass-through converter.
(3)Compact, light weight, portable size.
(4)HDMI in, Composite/S-video + Audio R/L out.
(5)Convert HDMI signal to Composite/S-video + Audio R/L signal.
(6)Optional choice for output video systems: PAL/NTSC.
(7)Power/signal LED indicators.
(8)Power supplied by AC adapter directly.
(9)Optional choice for output signal: CVBS/S-Video.
Note: This product doesn’t support simultaneous output of Composite Video. Please select either one of them by switch button on the unit.
Specification:
-Device Type: HDMI to 3RCA + Audio + Composite/S-video Converter
-Interface Type: HDMI in, Composite/S-video + Audio R/L out
-Input HDMI Resolution: 480p(60Hz), 576p(50Hz), 720p(50Hz/60Hz), 1080i(50Hz/60Hz), 1080p(50Hz/60Hz)
-Output Signal: Composite Video(1.0Vpp), S-Video(Y:1.0Vpp, C:3Vpp)
-Output Video Systems: PAL/NTSC
-Output Video Impedance: 75 Ohm
-Compatibility: HDMI 1.3; HDCP
-Power Supply: DC 5V 1A
-Working Temperature: -25 °C to 75°C
-Working Humidity: 10%-60%
-Dimension: 118 x 84 x 28 mm
Package Contents
Main unit: 1 pcs
Power supply: 1 pcs
User manual: 1 pcs
